PC 08-02 | 8mm Tube, R, PT, BSPT 1/4 Thread Male Connector | Push in Fitting

8mm tube, R, PT, BSPT 1/4 thread male connector tube fitting connects inline 8mm tubing to a R 1/4 female threaded port. Oval and round shape release sleeve for male connector. The male connectore quipped with a convenient one touch release button that provides a easy and quick tubing connection and disconnection. The stainless collect design offers a secure connections that hold the tube firmly.

External tightening with a flat wrench or socket wrench, internal adjustment with an Allen wrench.

Push-in Tubing O.D: 8mm
Thread Size: R, PT, BSPT 1/4
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Thread Sealing: Teflon-caoting
Seal, O-ring: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC

Price: $0.643

Ask for Quotation

Drawing and Dimensions of 8mm Tube, R, PT, BSPT 1/4 Thread Male Connector Push in Fitting

Part No.	ΦD	T	ΦP	A	B	L	H1	H2	O1	O2	C
PC 08-02	8mm	R1/4	13.8mm	9.5mm	24.5mm	17.5mm	14mm	6mm	16mm	13.8mm	13.8mm

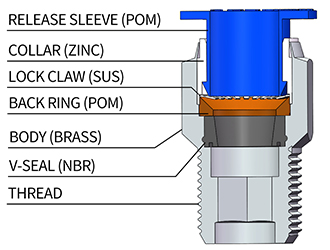

3D Construction

Optional Sleeve
